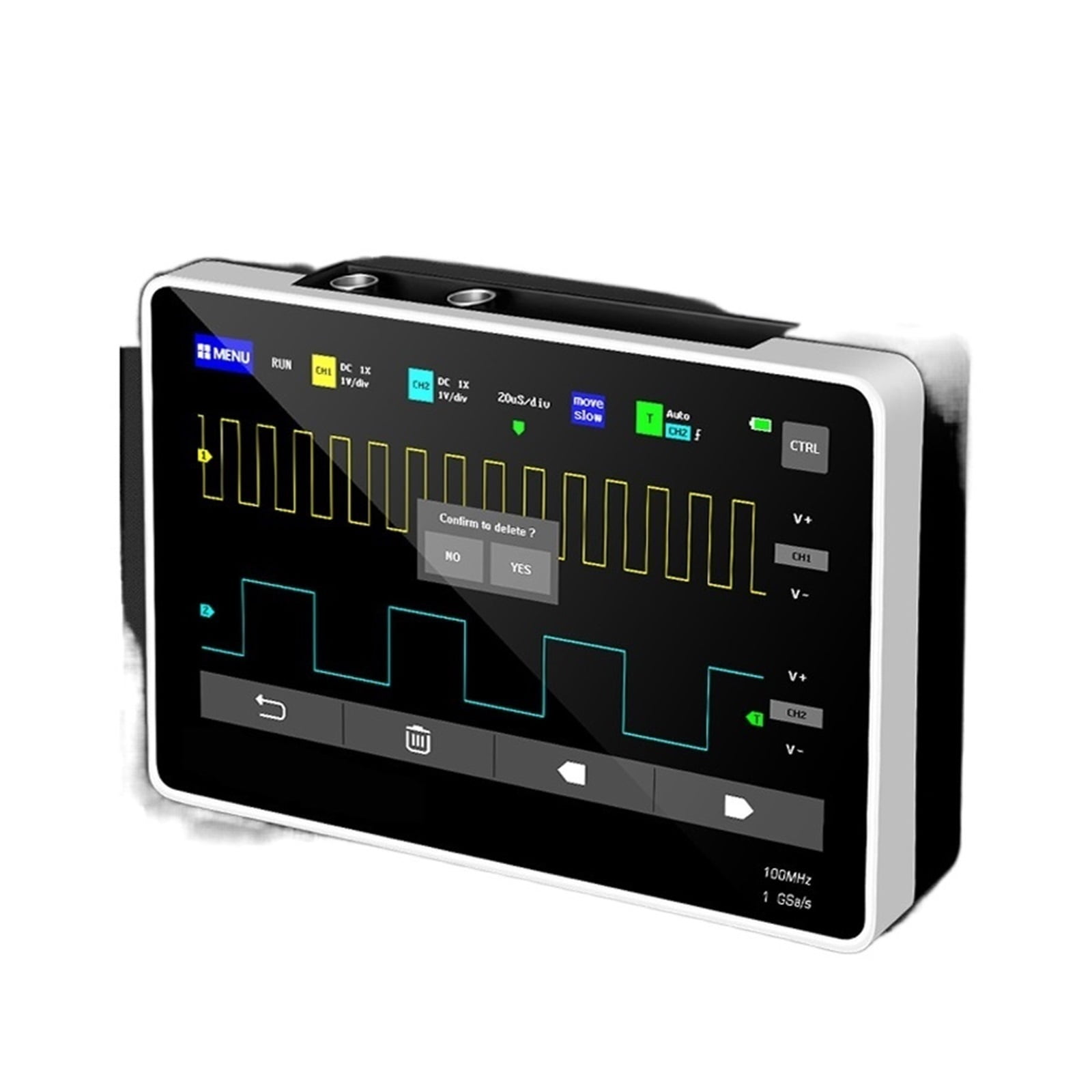

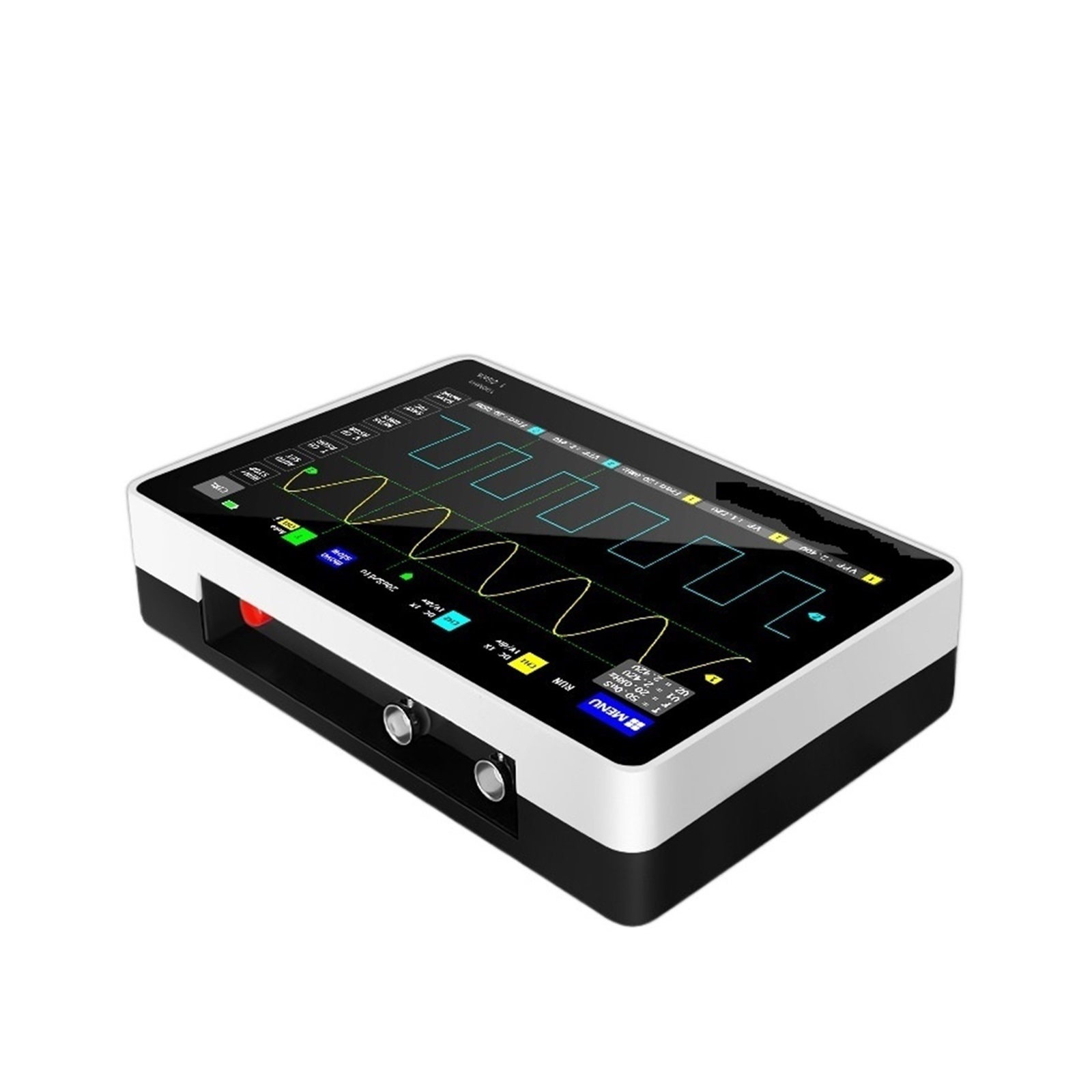

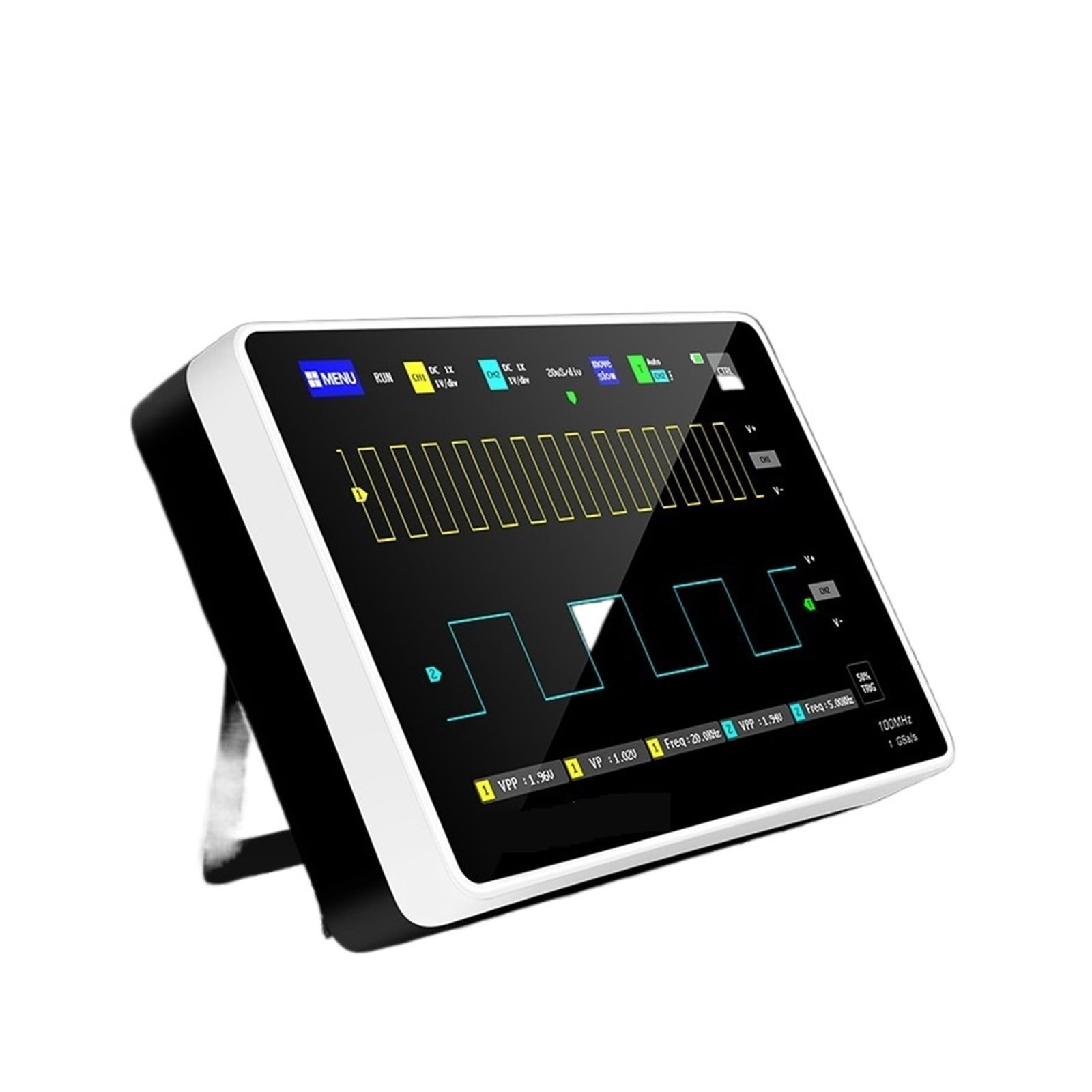

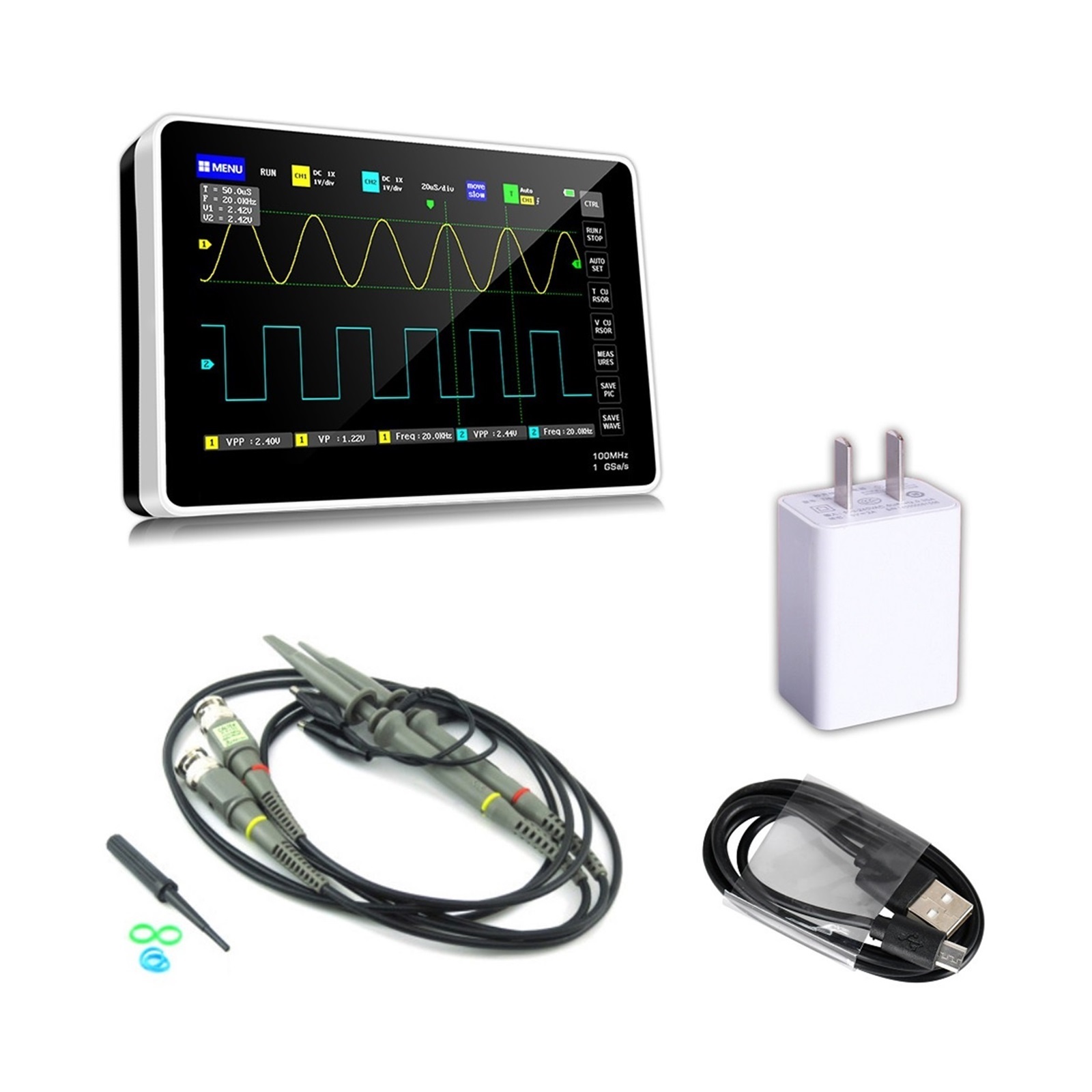

1013D Digital Tablet Oscilloscope Dual Channel 100M Bandwidth 1GS Sampling Rate Mini Tablet Digital Oscilloscope ,Professional Designed

<p>Features:</p><p>Intelligent anti-burn</p><p>100MHz analog bandwidth @ 1GSa/s sampling rate (1X=5MHz,10X=100MHz).</p><p>Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.</p><p>Complete triggering function (single, normal, automatic).</p><p>At any time, the waveform display (pause function) is frozen.</p><p>Equipped with high efficiency One-button AUTO.</p><p>One-button waveform storage and screenshot.</p><p>Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis.</p><p>Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.</p><p>Built in 6000mAh rechargeable lithium battery,fully charged for 4 hours of continuous use at the highest screen brightness.</p><p>Memory compression technology, waveform refresh screen does not flicker.</p><p>Screen brightness adjustment.</p><p>Background grid brightness adjustment.</p><p>Ultra thin, easy to carry.</p><p></p><p>Specifications:</p><p>Material: ABS</p><p>Color: black+white</p><p>Analog band width: 100MHz * 2</p><p>Number of channels: 2 channels</p><p>Maximum real time sampling rate: 1GSa/s</p><p>Horizontal time base range: 50S/div~10nS/div</p><p>Storage depth: 240Kbit</p><p>Input resistance: 1M</p><p>ADC precision: 8bits</p><p>Coupling mode: AC/DC</p><p>Trigger mode: Single, Normal, Auto</p><p>Trigger edge: Rising edge / Falling edge</p><p>Display: 7 inch - 800*480</p><p>Operating: capacitive touching screen + gesture</p><p>Extension ports: USB picture export</p><p>Power supply: 1 * lithium battery, 6000mAh (included)</p><p></p><p>1013d digital tablet oscilloscope,oscilloscope tablet 100mhz,mini digital oscilloscope,daniu tablet oscilloscope</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope for the maintenance and R & D industry
• Cursor measurement function, it is convenient to manually measure the period and frequency and voltage.
• Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
• Capacitive touching screen, the same as the touching mode of modern mobile tablet, is not a resistive touching screen with ancient nail operation.
• Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
